Name: Automatic Ripple Shape Block Making Machine QT8-15
Availability: InStock

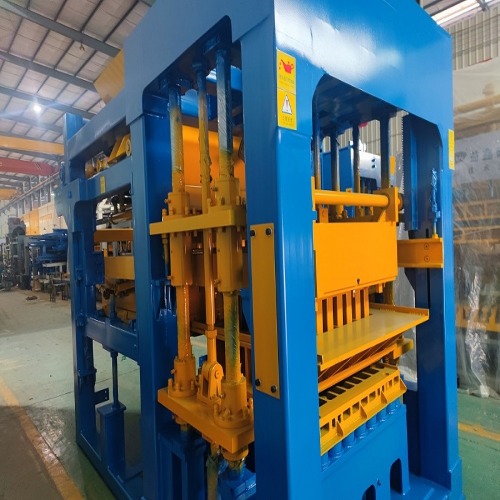

Automatic Ripple Shape Block Making Machine QT8-15

The QT8-15 machine automatically produces precise ripple-shaped blocks without manual mold changes. Its hydraulic system delivers high compaction, creating uniform shapes with sharp edges. The advanced control panel manages the complete cycle, from material feeding to block ejection. A dual-layer vibration system ensures dense, strong blocks. The machine supports quick mold swapping for different ripple profiles.

नमूना :
Yixin Machinery QT8-15
मशीन का आयाम :
9450*3600*2800
पैलेट का आकार :
940*860（MM）
समय चक्र :
15-20（S）
कंपन बल :
95(KN)
वैटेड दबाव :
21（mpa）
शक्ति :
31.7(KW)

अभी पूछताछ करें

Automatic Ripple Shape Block Making Machine QT8-15

Reference video of QT8-15 ripple shape block making machine

The QT8-15 automatic ripple shape block making machine uses high-frequency vibration and hydraulic pressure to transform concrete from the storage hopper into dense, durable blocks. Its main equipment includes a forced mixer, conveyor, hydraulic power unit, and PLC control panel. The vibration system ensures uniform compaction, while the pressing mechanism creates precise ripple shapes.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	8	1440	11520-15360
Solid Block	24011553	42	10080	60480-80640
Holland Block	20010060	28	5040	40320
Zigzag Block	225112.560	24	4320	34560

Product Detail

The cast vibration table on the QT8-15 integrates dual-shaft high-frequency vibrators and synchronized servo drives to achieve uniform material compaction. It ensures rapid mold filling, eliminates air voids, and produces dense, sharp-edged concrete blocks with consistent ripple surface textures. The table automatically adjusts vibration amplitude and frequency based on material viscosity, reducing cycle time while enhancing structural integrity.
The guiding system of the QT8-15 ensures exceptional precision and stability during block production. It uses heavy-duty linear guide rails and precision-machined sliding blocks to maintain perfect alignment of the mold and pressing head. This design eliminates lateral movement, reduces mechanical wear, and guarantees uniform ripple shape formation. The result is consistent block quality, higher production efficiency, and lower maintenance costs.
The PLC control unit of the QT8-15 machine precisely manages all equipment actions and the entire production process. It coordinates material feeding, mixing, mould vibration, compression, and automatic pallet feeding. All operational parameters, including vibration frequency and compression time, are programmable through an intuitive interface. The system ensures perfect synchronization between conveyors, block forming unit, and hydraulic system.

Block Display

The hydraulic unit of the QT8-15 automatic ripple shape block making machine delivers reliable hydraulic power to support all machine actions, including material feeding, pressing, and mold vibration. It ensures smooth, high-force transmission for consistent block forming with precise ripple patterns. Designed for energy efficiency and low maintenance, this unit enables stable operation under continuous heavy workloads, improving production speed and block density.

Customers Access

The pallet feeder of the QT8-15 automatic ripple shape block making machine ensures precise and efficient placement of pallets directly under the block forming unit. It operates with a reliable hydraulic or servo-driven mechanism that synchronizes seamlessly with the machine’s cycle. This feeder reduces manual labor, minimizes downtime, and increases production speed. Its robust design accommodates heavy-duty use, guaranteeing consistent pallet alignment for uniform block shaping.

FAQ

1.How long does the product production cycle typically take?

Automatic Ripple Shape Block Making Machine QT8-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Automatic Ripple Shape Block Making Machine QT8-15?

The raw materials utilized in the production process of Automatic Ripple Shape Block Making Machine QT8-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Automatic Ripple Shape Block Making Machine QT8-15 after mold confirmation?

The estimated date of shipment for the Automatic Ripple Shape Block Making Machine QT8-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Automatic Ripple Shape Block Making Machine QT8-15 be equipped with an additional device to produce various types of colored paving blocks?

Yes, the Automatic Ripple Shape Block Making Machine QT8-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
