Name: Robust Quality Heavy Duty Solid Block Forming Machine QT15-15
Availability: InStock

Robust Quality Heavy Duty Solid Block Forming Machine QT15-15

This QT15-15 block forming machine uses a 90 mm diameter guide cylinder and a 400 mm height bushing. This design ensures stable synchronization between the tamper head and the mould frame during vertical movement. The robust mechanism minimizes vibration, improves forming accuracy, and extends component life. Ideal for heavy-duty production of solid blocks, it delivers consistent quality and high output under continuous operation. Reliable, precise, and built for demanding environments.

नमूना :
Yixin Machinery HD15-15
मशीन का आयाम :
12800*4500*2800
पैलेट का आकार :
1350*1100(MM)
समय चक्र :
13-25(S)
कंपन बल :
120(KN)
वैटेड दबाव :
21(MPA)
शक्ति :
93(KW)

अभी पूछताछ करें

Robust Quality Heavy Duty Solid Block Forming Machine QT15-15

Reference video of HD15-15 solid block Forming machine

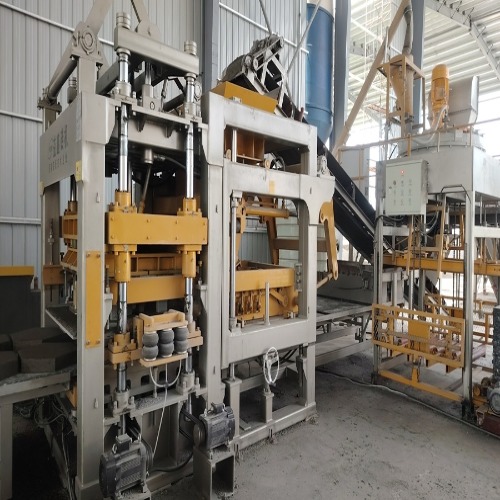

The QT15-15 robust block forming machine integrates Germany’s Continental airbags with a precision pressure control system, ensuring stable, high-density block production. Its tooling system allows operators to change and fix moulds quickly and easily, minimizing downtime. Designed for heavy-duty use, this machine delivers consistent quality and simplifies maintenance, making it ideal for efficient, large-scale concrete block production.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	15	2750	22000
Solid Block	24011553	84	20625	165000
Holland Paver	20010060	55	10890	87120
Zigzag Paver	225112.560	40	7920	63360

Product Detail

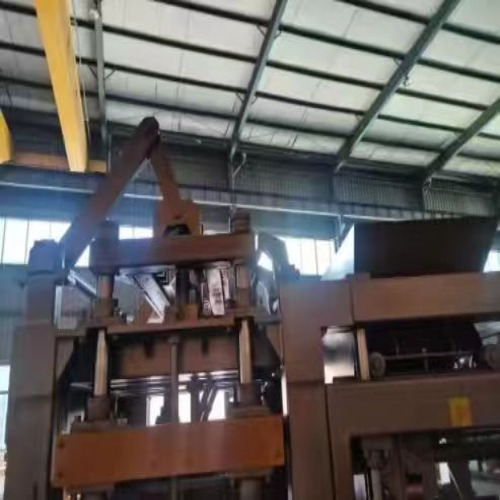

The QT15-15 features a synchronized demolding system where all mold components move in perfect unison. This advanced coordination eliminates tilting or uneven release, enabling faster cycle times without compromising block integrity. The design ensures consistent demolding force across the entire block set, reducing breakage risks and improving production stability. Operators benefit from smoother operation, lower maintenance needs, and higher output of robust, heavy-duty solid blocks. The result is a reliable, high-efficiency machine ideal for large-scale projects demanding speed and precision.

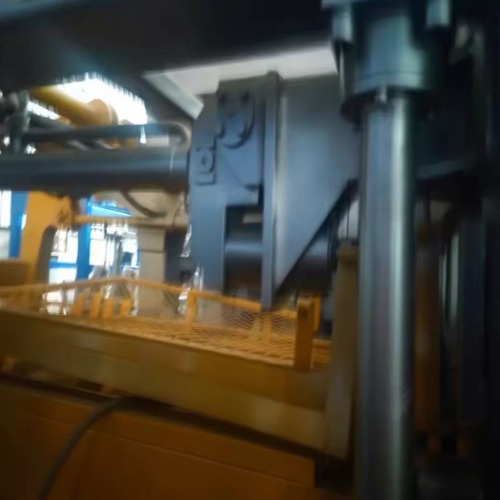

The advance and retreat cushion pad in the QT15-15 feeding car provides essential buffering, significantly reducing mechanical vibration during operation. This component ensures smooth and precise movement of the feeding car, protecting critical parts from impact damage. By absorbing shocks at the end of each stroke, it enhances machine stability and component longevity. Operators benefit from quieter performance and lower maintenance needs.
The QT15-15 features long guide sleeves that deliver exceptional stability and balance during block forming. These sleeves support precise alignment of moving parts, reducing vibration for consistent product quality. The guiding bush is designed to be raised and lowered, which minimizes friction and contact wear over time. This smart lifting function significantly extends the service life of critical components, lowers maintenance needs, and ensures reliable performance in heavy-duty operations.

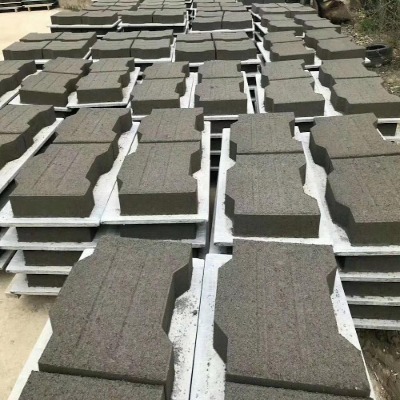

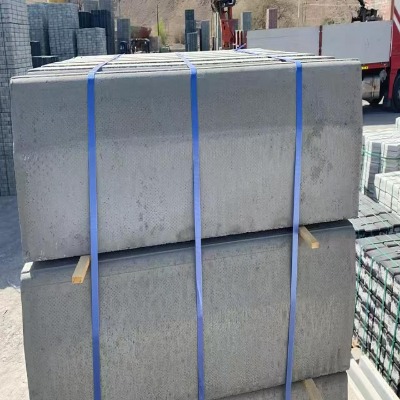

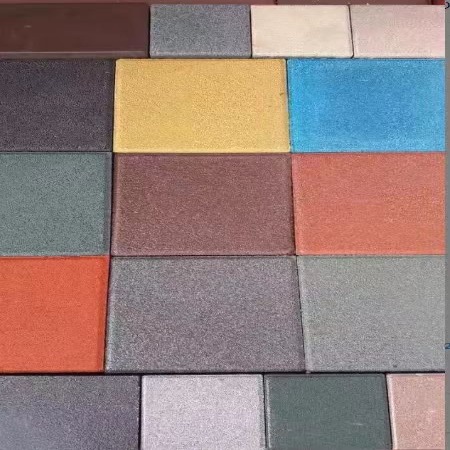

Block Display

The servo hydraulic system delivers precise hydraulic pressure during machine operation, ensuring robust block forming. It intelligently adjusts power output to match demand, significantly reducing energy consumption compared to conventional systems. By enabling smooth, accurate control of moving parts, it enhances production consistency and extends component life.

Customers Access

The QT15-15 features a suspended material cart designed for faster fabrication and enhanced durability. Its robust structure reduces wear and vibration, ensuring stable operation under heavy loads. The quick-feed system shortens material distribution time, boosting overall block production efficiency.

FAQ

1.What types of products can be produced using Robust Quality Heavy Duty Solid Block Forming Machine QT15-15?

Robust Quality Heavy Duty Solid Block Forming Machine QT15-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the Robust Quality Heavy Duty Solid Block Forming Machine QT15-15?

This machine can produce up to 2750 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process of Robust Quality Heavy Duty Solid Block Forming Machine QT15-15, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of Robust Quality Heavy Duty Solid Block Forming Machine QT15-15primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
