Name: High Accuracy Heavy Duty Hollow Block Making Machine QT18-15
Availability: InStock

High Accuracy Heavy Duty Hollow Block Making Machine QT18-15

The QT18-15 hollow block machine features an airbag mould change system using Germany brand Continental airbags with a precision pressure control system. Operators can easily change and fix moulds without heavy tools or complex steps. The system allows quick positioning, secure clamping, and smooth release, reducing downtime significantly.

नमूना :
Yixin Machinery HD18-15
मशीन का आयाम :
12800*5500*2800
पैलेट का आकार :
1350*1350(MM)
समय चक्र :
15-25(S)
कंपन बल :
120(KN)
वैटेड दबाव :
21(MPA)
शक्ति :
100(KW)

अभी पूछताछ करें

High Accuracy Heavy Duty Hollow Block Making Machine QT18-15

Reference video of HD18-15 hollow block making machine

The QT18-15 machine features a high-precision vibrating table that ensures each hollow block is perfectly compacted. During forming, the vibration table distributes force evenly, eliminating air voids and material inconsistencies. This results in bricks with sharp edges, smooth surfaces, and uniform dimensions. The dual-shaft vibrator and heavy-duty table deliver consistent density from bottom to top, reducing cracking or crumbling during demolding.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	18	2852	22816
Solid Block	24011553	100	27500	220000
Holland Paver	20010060	66	11688	93504
Zigzag Paver	225112.560	50	9900	79200

Product Detail

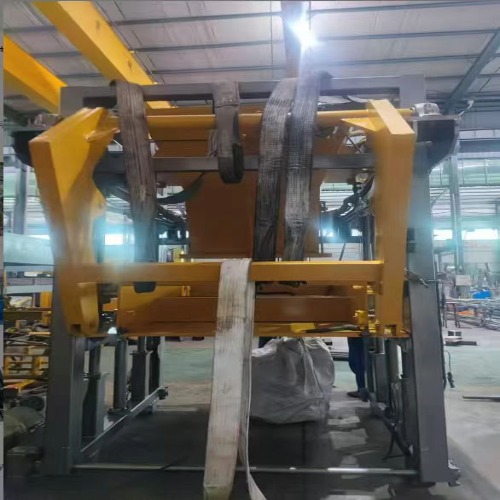

The flexible feeding arm on the QT18-15 is engineered to push the material cart with enhanced stability. It ensures smooth and controlled movement, reducing vibration and material spillage during high-speed operation. This design minimizes wear on the cart and guiding rails, extending component life. The arm adapts to varying material flow, maintaining consistent feeding accuracy for heavy-duty cycles.
The QT18-15’s color mixer system enables precise blending of pigments with base materials for uniform, vibrant block coloring. It integrates seamlessly, allowing operators to adjust color ratios via the PLC interface. The system uses a twin-shaft mixer for consistent dispersion without compromising block strength or production speed. Easy to clean and maintain, it supports rapid color changeover, reducing downtime.
The QT18-15 block making machine features long guide sleeves that ensure stability and balance during operation. These sleeves allow smooth vertical movement of the mold, significantly reducing friction and mechanical wear. The guiding bush can be raised and lowered as needed, which helps extend the service life of critical components. This design maintains consistent alignment even under heavy-duty cycles, resulting in high-accuracy block production.

Block Display

The QT18-15 block making machine integrates an optimal international design process with advanced technology for superior accuracy and durability. Its heavy-duty hollow block production ensures consistent, high-strength output. The crank arm fabrication enables fast, uniform compaction, reducing cycle times while maintaining block precision.

Professional Shipping

The QT18-15 high accuracy heavy duty hollow block making machine delivers fully automatic production of various block sizes, including hollow, solid, and paver blocks. Its robust hydraulic system ensures high vibration force and fast molding cycles, resulting in dense, uniform blocks with excellent strength. The user-friendly PLC control allows precise adjustments to meet different project requirements.

FAQ

1.What types of products can be produced using High Accuracy Heavy Duty Hollow Block Making Machine QT18-15?

High Accuracy Heavy Duty Hollow Block Making Machine QT18-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the High Accuracy Heavy Duty Hollow Block Making Machine QT18-15?

This machine can produce up to 2852 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process ofHigh Accuracy Heavy Duty Hollow Block Making Machine QT18-15, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of High Accuracy Heavy Duty Hollow Block Making Machine QT18-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
